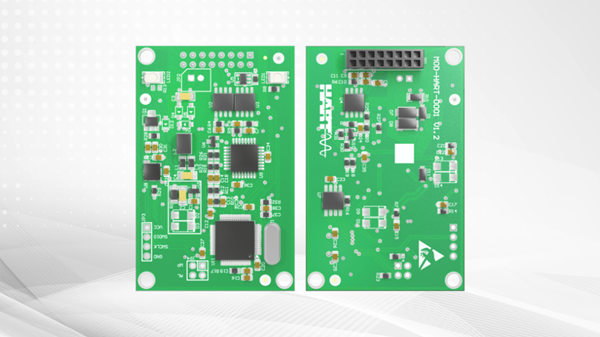

Breaking the Bottleneck in Industrial Communication ✨M0310 Modbus to HART Module: Bridging Data Barriers Between Heterogeneous Devices
The M0310 is an industrial-grade embedded conversion module that can seamlessly convert Modbus RTU slaves to standard HART slaves, adapting to various field requirements.
• Integration method: It can be embedded inside various Modbus measuring instruments without changing the appearance and mechanical structure of the equipment;
• Communication method: TTL level is used to complete Modbus master communication, and the device accesses the bus as a HART slave to realize bidirectional data mapping and conversion;
• Hardware design: The 16-pin standard socket is mounted on the board, with a compact structure that requires no additional wiring and allows for quick connection.
✅ Industrial-grade hardware protection for enhanced stability and reliability
• Wide voltage power supply: 11.9～35VDC, compatible with various field power supplies;
• Electrical isolation: Modbus and HART interfaces are isolated with 500VAC to suppress field interference;
• Wide temperature range: -40～85℃, meeting the needs of harsh industrial environments;
• Precise and efficient: Current error ≤50μA across the entire temperature range, start-up ≤5 seconds, works immediately upon power-on;
• Easy troubleshooting: Dual LED indicator lights allow for quick location of HART and Modbus communication faults.
✅ Lightweight configuration, easy for beginners to use
• Dual configuration modes: Both dedicated configuration software and HART handheld devices are compatible, suitable for on-site debugging;
• Extremely simple process: Complete configuration in three steps, no professional debugging experience required;
• Batch deployment: Supports batch download of configurations to improve deployment efficiency;
• Online debugging: Built-in testing function allows for online verification of communication and data read/write, reducing debugging costs.
Typical Application Scenarios | Three Core Scenarios for Direct Reuse and Implementation
Scenario 1: Synchronous Transmission of Multivariable Data from Industrial Instruments
Leveraging the module variable mapping capability, multiple parameters such as instantaneous flow rate and temperature can be uploaded at once via HART, breaking through the limitation of 4-20mA single variable and improving the accuracy of control.
Scenario 2: Embedded Integration Development for Instrument Manufacturers
We provide standardized solutions for instrument manufacturers, shorten the R&D cycle, quickly achieve HART compatibility of Modbus devices, and enhance product competitiveness.
Scenario 3: Deployment of Heterogeneous Industrial Networks
By connecting Modbus devices with the HART control system, "data silos" are eliminated, enabling full-domain data interoperability and supporting centralized digital management and control of the factory.
