Breaking the Bottleneck in Industrial Communication | HART to Modbus Gateway: One-Click Breakdown of Data Barriers in Heterogeneous Networks
Industrial Field Pain Points: Protocol barriers hindering data value
In industrial automation environments, different devices and control systems use different protocols,which can easily creating "information silos." The most common problem is that a large number of HART protocol smart instruments cannot directly communicate with the upper-level Modbus control network . The real-time operating conditions, diagnostic data, and status parameters of these instruments are difficult for the upper-level system to utilize efficiently, hindering data integration and intelligent operation and maintenance efficiency.
To solve this problem without the need for large-scale equipment replacement, The HART to Modbus gateway is a cost-effective "communication interpreter" that achieves seamless connection between the two types of networks through professional protocol conversion, revitalizes existing instruments, and unlocking the value of field data.

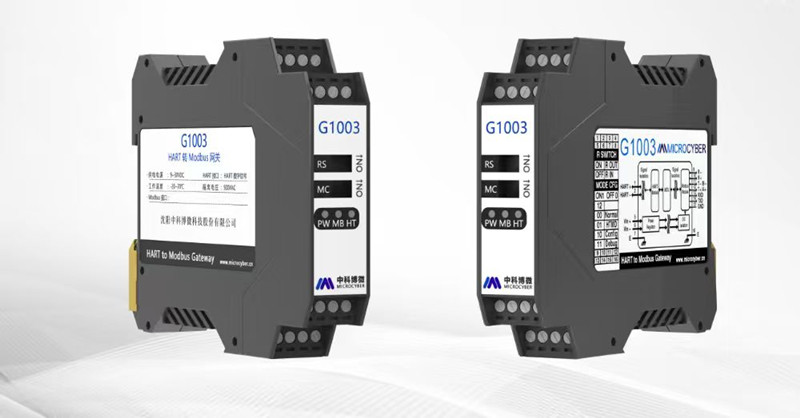

1. Product Overview: G1003 HART to Modbus Gateway
The G1003 HART to Modbus gateway that developed by Microcyber Corporation, is designed specifically for industrial heterogeneous network interconnection. It serves as a dedicated bridge connecting HART smart instruments and Modbus control systems, completely breaking down protocol barriers and enabling transparent data acquisition and seamless mapping.
It is not a simple data repeater, but a core hardware that connects the device layer and the information layer, adaptable to various industrial conditions, offering high stability, reliability, and strong compatibility.
1.1 Core Positioning: Dedicated "Protocol Interpreter" for Industrial Sites
Targeting the needs of industrial IoT upgrades and retrofitting outdated instruments, it solves the communication challenges between existing HART instruments and modern Modbus networks, enabling system compatibility and data interoperability at low cost without replacing the original instruments.
1.2 Working Principle: Clear and simple two-way conversion
The gateway adopts a "HART master - Modbus slave" architecture, which is efficient in conversion with clearly defined roles.
• HART interface : Act as the HART master station/secondary master station,actively polling the instruments to collect process variables, diagnostic information, and full data on equipment status.
• Modbus interface : Act as a Modbus slave, accurately mapping the acquired data to standard Modbus registers, allowing direct access by host computers, PLCs, and DCS systems.
• Data Conversion : Built-in professional protocol stack enables real-time conversion between HART messages and Modbus data frames, supporting both transparent transmission and format conversion modes.
2. Core Performance: Three Key Features for Industrial Environments
2.1 Superior protocol compatibility for mainstream devices
• HART protocol: Fully supports HART 7.0 standard and is backward compatible, supporting both long and short frame formats.
• Modbus protocol: Supports Modbus RTU and ASCII communication modes, compatible with standard Modbus function codes (0x03/0x04/0x06/0x10).
• Network topology flexibility : Supports HART single-point and multi-point working modes, with up to 15 HART slave devices that can be connected in multi-point mode.
2.2 Multiple hardware interfaces, industrial-grade stability protection
• Modbus interface options : Provides RS232, RS422, and RS485 hardware interfaces to meet different field interface requirements.
• HART interface characteristics : Input impedance ≥ 5KΩ, withstand voltage 50VDC, output amplitude 500mVpp (500Ω).
• Electrical isolation : Provides 500VAC isolation voltage between the Modbus and HART interfaces to ensure system safety.
2.3 Advanced and practical functions make project deployment easier
• Customizable commands : Supports up to 100 customizable HART commands, with 5000 bytes each for HART input and output data buffers.
• Modem mode : The gateway can be configured for use in HART mode, enhancing application flexibility.
• Sampling resistor selection : You can choose to use either an internal or external sampling resistor to adapt to different field conditions.
3. Practical Engineering: Installation and Configuration, Quickly Master Useful Techniques
3.1 Hardware Installation: Standard Wiring and Key Points to Avoid Pitfalls
The gateway supports multiple wiring methods, including loop power supply, external power supply, and single-point/multi-point wiring. It can be flexibly selected according to the number of instruments and power supply method. The core is to standardize wiring and ensure isolation and anti-interference. The loop power supply + external resistor solution is suitable for most field scenarios.

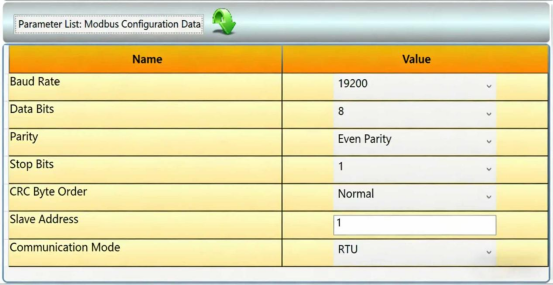

3.2 Parameter Configuration: A Few Steps to Get Started Efficiently
Easily complete configuration through the dedicated configuration software Modbus General Configuration Tool. Ensure the gateway is properly powered and connected to the network in advance.
4.Core advantages of the gateway: Why choose it?
• High compatibility : Adapted to HART 7.0, compatible with mainstream HART instrument brands.
• Strong scalability : Features strong load-bearing capacity in multi-point mode, meeting the needs of medium-sized field operations.
• Easy to deploy : Flexible configuration, supports multiple working modes and wiring methods.
• Ultra-stable : Industrial-grade design and electrical isolation, suitable for harsh industrial environments.
• Easy integration : Standard Modbus interface, seamlessly connects to mainstream SCADA, PLC, and DCS systems.
5. Applicable to multiple scenarios: Covering the entire industrial process
This gateway is adaptable to a wide range of scenarios, especially suitable for process industries and the transformation of legacy systems. Core application scenarios include:
• Petrochemical plant integration : In the hydrogenation unit and reactor area of refining and chemical enterprises, the data of HART temperature, pressure and flow transmitters are converted into Modbus signals through a gateway and connected to the PLC/SCADA system to realize real-time monitoring and anomaly early warning without the need to replace existing instruments.
• Upgrades to power and heating systems : For thermal power plant generator units and heating pipe networks, upgrades are implemented to meet the needs of centralized data acquisition from multiple instruments, resist strong electromagnetic interference on-site, enable remote control of pipe network data, and facilitate digital operation and maintenance of the plant area.
• Digital upgrade of old factory areas : In industries such as pharmaceuticals and metallurgy, where new and old equipment are used together, data links are opened up by protocol conversion without changing the original wiring and equipment, eliminating information silos and realizing centralized management and control of production data.
• Multi-protocol hybrid field integration : For complex working conditions where HART and Modbus protocols coexist, it enables unified data acquisition and transparent transmission, achieving efficient system integration.
6. Conclusion: Connecting data links to facilitate industrial digitalization
In the digital transformation of industry, field data interoperability is a core foundation. The G1003 HART to Modbus gateway solves the problem of HART and Modbus protocol interoperability with a low-cost, high-reliability solution, revitalizes existing equipment, and breaks down data barriers between the field and the control layer.
From installation and configuration to system integration, it can quickly achieve seamless connection between heterogeneous networks, which not only meets the current data collection needs, but also lays a solid foundation for subsequent predictive maintenance, intelligent management and control, and unified data platform. It is a practical tool for the digital upgrade of industrial sites.
