Application Case of M0310-ACT in HART Communication for Electric Actuators
1. Overview
Project Background:
In an industrial site, there are a large number of electric actuators that use Modbus RTU for communication. Their control logic is mature and their operation is reliable. However, the upper-level control system adopts HART protocol as the mainstream standard, which makes it impossible for the actuators to be directly connected, resulting in "information silos" of field data.
Core Objective:
To "package" existing Modbus actuators into HART actuators, enabling seamless integration with the HART master system and completing communication upgrades without replacing equipment.
Design Basis/Standards Compliance:
Strictly compliant with the HART 7.9 protocol standard and is compatible with various HART master stations and AMS device management systems.
Value Delivered to Customers:
Lightweight embedded system upgrade, no disruption to normal production, rapid protocol conversion, and significantly reduced equipment replacement costs.
2. Challenges and Requirements Analysis
2.1 Current Site Conditions
The on-site electric actuators use Modbus RTU communication, receiving opening settings and start/stop commands via registers. The upper-level control system, however, primarily uses HART, meaning the Modbus actuators and the HART master station cannot communicate directly due to a language barrier.
2.2 Existing Pain Points
Protocol Incompatibility: Modbus actuators cannot directly interface with HART control systems, and data cannot be uploaded to DCS or AMS device management systems.
High Retrofit Costs: Replacing with native HART actuators would incur significant equipment procurement costs and substantial production downtime losses.
Data Inaccessibility: Multi-variable data such as valve position and torque remain trapped on the Modbus side, unavailable to the upper-level systems for purposes such as predictive maintenance.
2.3 Core Requirements
· Achieve bidirectional conversion from Modbus actuators to HART-compliant actuators.
· Ensure no production shutdown and no replacement of existing equipment during the retrofit process.
· Improve overall system availability and compatibility.
3. Product and Technology Introduction

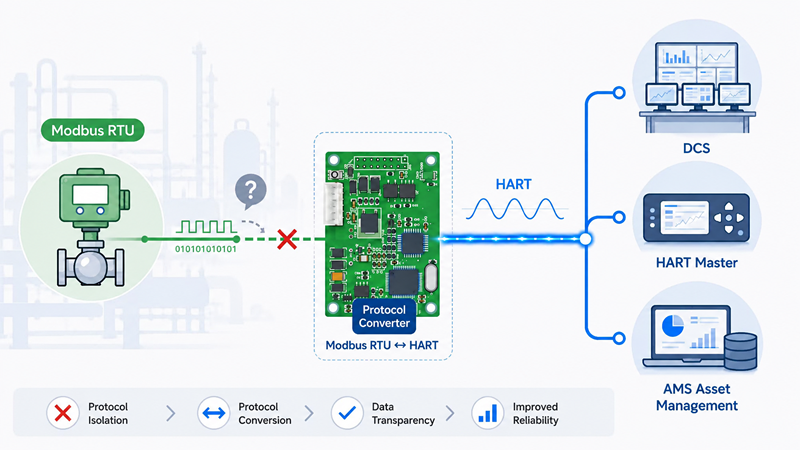

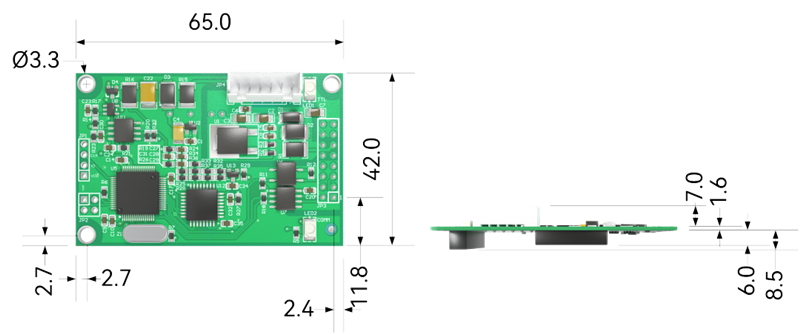

The M0310-ACT is a dedicated version of the M-series embedded modules from Microcyber, specifically customized for HART communication in electric actuators. Its core positioning is to serve as a "bidirectional translation bridge" between Modbus actuators and HART master stations. Featuring a modular design, it is easy to integrate and deploy, while also supporting host systems across multiple platforms, including DTM, FDI, DD, etc. The module's dimensional drawing is shown below (unit: mm).
Key Features:
Input Side: Modbus RTU master interface, directly connected to the actuator main control board, adapting to the existing equipment communication logic.
Output Side: HART 7.9 slave interface, for connecting to HART master station, control system or AMS device management system.
Core Functionality: Bidirectional protocol translation—HART instructions are translated into Modbus register operations, and Modbus status data is converted into HART standard variables, with no need for additional protocol stack development.
Core Technical Advantages:
Dedicated Dual-Channel Design, Optimized for Actuators: Specifically tailored for electric actuators with two independent dedicated channels — a status monitoring channel (reading 6 device variables including position, torque, temperature, etc.) and a command control channel (target position setting, start/stop, emergency braking). Control and monitoring signals are completely isolated, ensuring safer operation.
Full-Scenario Protocol Compatibility: The HART side strictly complies with the HART 7.9 standard and supports 6 device variables and 4 dynamic variables (PV/SV/TV/QV); the Modbus side supports RTU mode and is compatible with 01H/02H/03H/04H/05H/10H full-function codes, covering the vast majority of actuator communication needs.
Flexible Parameter Configuration: Equipped with a dedicated configuration interface, it supports free switching between two types of actuators: switch type and position control type. The control register address and instruction writing value can be customized.
Industrial-Grade Hardware Performance: Wide voltage power supply (24V±10% DC), Modbus and HART interfaces with 500VAC electrical isolation, wide temperature range of -40℃ to 85℃, and power-on startup time of ≤5 seconds, meeting the requirements of harsh industrial environments.
Matching Points for This Scenario:
The dual-channel design ensures that control commands and status monitoring do not interfere with each other, solving the pain point of confusion between control and monitoring signals from field actuators.
The full-function code is compatible with the communication requirements of various Modbus actuators in the field, without requiring modification of the original equipment program.
Its industrial-grade wide-temperature and isolation design is suitable for harsh electrical environments, ensuring long-term stable operation.
4. Overall Solution Design
4.1 Design Concept

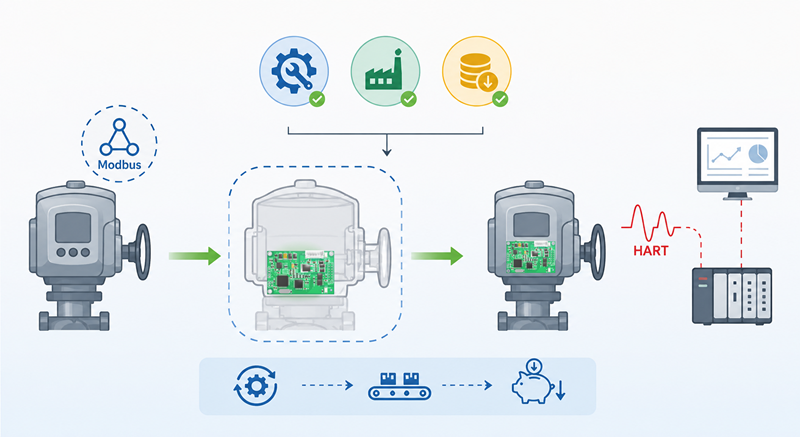

Based on the principles of "no equipment modification, no production interruption, and low cost," the M0310-ACT module is embedded into the existing electric actuator. While maintaining the original Modbus control logic, a standard HART communication interface is added to the actuator, enabling it to be recognized as a native HART device by the HART master station for management and control.
4.2 Solution Advantages
Comparison | M0310-ACT Solution | Traditional Renovation Solution |
Compatibility | Bidirectional translation, the HART master station "feels" directly controlling native HART devices | Requires replacement with native HART actuators or installation of large gateway devices |
Cost | Module-level embedded solutions cost only a fraction of what it would cost to replace a device | Equipment replacement costs are high, and downtime results in huge losses |
Construction Period | Embedded integration, plug and play, short transformation cycle | Requires production shutdown, disassembly, rewiring, resulting in long project duration |
Stability | 500VAC isolation, wide temperature range design, strong anti-interference capability | The new equipment needs to be broken in and tested again. |
5. Expected Results and Value Analysis
5.1 Technical Performance Improvements
Communication Success Rate: The M0310-ACT strictly complies with the HART 7.9 standard, is compatible with various HART master stations and AMS systems, and has 100% communication compatibility.
System Compatibility: Existing Modbus actuators can be recognized as native HART devices by the HART system without any software or hardware modifications.
Data Dimension Expansion: Supports uploading 6 device variables and 4 dynamic variables, breaking through the limitations of traditional 4-20mA single variable transmission.
5.2 Economic and Management Benefits
Cost Savings on Equipment Replacement: Existing Modbus actuators can continue to be used without the need to purchase native HART actuators, which is especially economical for large-scale retrofits.
Avoidance of Production Downtime Losses: The M0310-ACT adopts an embedded integrated solution, and the transformation process does not affect normal production and does not require shutdown, thus fundamentally avoiding the production capacity loss caused by traditional transformations due to production stoppages.
Reduce R&D Investment and Shorten Product Launch Cycle: For actuator manufacturers, the M0310-ACT provides a complete Modbus to HART communication solution. There is no need to set up a dedicated team for HART protocol stack development and hardware design. It can be directly integrated into existing products, which greatly reduces R&D costs and technical risks and accelerates the time to market for HART compatible actuators.
Elimination of Product Stability Testing and Certification Efforts: The M0310-ACT has been thoroughly validated in industrial settings and strictly complies with the HART 7.9 standard. Integrating this module eliminates the need for additional investment in protocol conformance testing, electromagnetic compatibility testing, and long-term stability verification. The module's maturity can be directly reused, effectively avoiding potential problems such as communication instability and poor protocol compatibility that may arise with self-developed solutions.
Unlocking Data Value: Actuator operating status data (valve position, torque, temperature, etc.) are uploaded to the AMS equipment management system in real time via the HART protocol, laying the data foundation for predictive maintenance, equipment health assessment and full life cycle management, and helping enterprises with digital transformation.
6. Implementation Process
Standardization Implementation Steps:
1.) On-site Survey: Confirm the actuator model and Modbus communication parameters (baud rate, parity method, register address mapping table).
2.) Module Integration: The M0310-ACT module is embedded inside the actuator, connected to the main control board via the Modbus interface, and the HART interface is brought out to the bus.
3.) Parameter Configuration: Use the dedicated configuration software HART MPT to set Modbus communication parameters, actuator type (on/off type or position control type), control register addresses, and command mapping values .
The specific parameters of the equipment and configuration parameters are shown in the table below:
Configuration Items | Register Address | Data Types |
Target Opening | 3 | Float1032 |
Valve Feedback | 7 | Float1032 |
Torque Feedback | 9 | Float1032 |
As shown in the diagram above, the actuator register is configured at address 3, with the data type selected as Float1032. This register corresponds to the actuator's target opening setting value. Simultaneously, device variable 0 is configured for valve feedback, and device variable 1 is configured for torque feedback. Each parameter corresponds one-to-one with the register address and data type described in the table above, ensuring the module accurately parses and converts bidirectional data.
Stability Test: Continuous operation test, observe the status of LED indicator to confirm that there are no abnormalities in HART and Modbus communication.
Delivery and Acceptance: Connect to the HART master station/DCS/AMS system and complete the full-link joint debugging and acceptance.
7. Functionality Implementation
After the upgrade, the original Modbus actuator will have the following complete HART device functions:
Real-time Data Acquisition: Multiple variables such as valve position, torque, and temperature are uploaded in real time via HART dynamic variables (PV/SV/TV/QV).
Parameter Reading and Writing: The HART master station/AMS system can read and write the executor parameter settings through standard HART commands.
8. Applicable Scenarios
Scenario 1: In an old workshop, actuators from multiple brands are used interchangeably, making centralized data monitoring impossible.
In process industries, there are numerous electric actuators using Modbus RTU communication, but the upper-level control systems primarily use HART, preventing data from being uploaded to the DCS. The M0310-ACT can "package" these actuators as HART devices, enabling unified access without requiring equipment replacement.
Scenario 2: Embedded Integration Development by Actuator Manufacturers
We provide actuator manufacturers with standardized HART communication integration solutions, shortening the R&D cycle, enabling rapid HART compatibility upgrades of products, and enhancing product competitiveness.
9. Solution Summary
The Microcyber M0310-ACT Modbus-to-HART actuator embedded module features lightweight design, high adaptability, and strong deployability as its core advantages. It is specifically engineered to solve the "language barrier" problem between Modbus actuators and HART systems in process industry sites.
The solution requires no replacement of existing equipment or production shutdowns for modification. Existing Modbus actuators can be "packaged" into standard HART actuators simply through embedded module integration, achieving protocol upgrades and data interoperability at extremely low cost. The module strictly complies with the HART 7.9 standard, possesses industrial-grade wide-temperature range and isolation protection, and is suitable for various harsh operating conditions, making it a cost-effective and highly reliable option for intelligent actuator upgrades.
